Frozen Meat Grinder

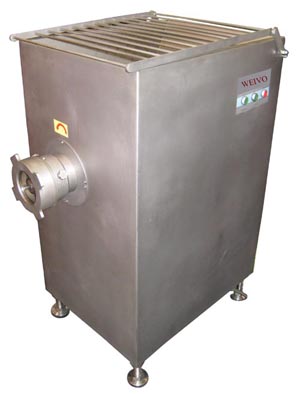

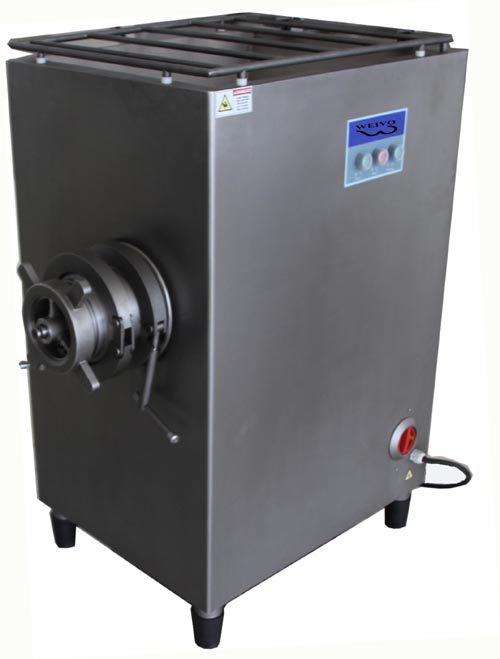

model Output(T/h) Power(KW)
120 1.5-2 7.5
Power supply(V;HZ) Rotary speed(r/min) Dimension(mm)
380;50 245 950×550×1050

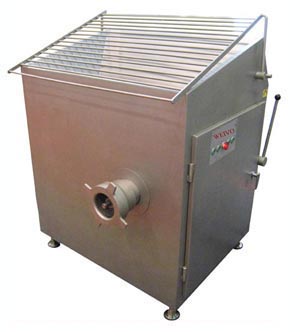

Model Meat output (T/h) Power(KW)
130 2--3 11
Power supply(V;HZ)

  Rotary speed(r/min)

Dimension(mm)
380;50 190 1050×750×1300



model

Output(T/h)

Power(KW)

140 2.5-3.5 11/14

Power supply(V;HZ)

Rotary speed(r/min)

Dimension(mm)

380;50

1000

1185×1040×1450



Model Output(T/h) Power(KW)
JR-D160 2-4 15
Power supply(V;HZ) Rotary speed(r/min) Dimension(mm)
380;50 136 1600×1080×1460





Type: Frozen Meat Grinder
holeplate diameter: 120mm ,130mm,140mm,160mm,300mm
output: approx. tons / h
frozen meat
(depends on holeplate size, meat, temperature)

euqipment: loader for 200 liter trolleys
1 x worm and lining type S for frozen
meat from 0°C to -18°C
(This information is without liability)
1 x cutting set
1 x stainless steel equipment trolley
hand safety cover
extended hopper

stainless steel
